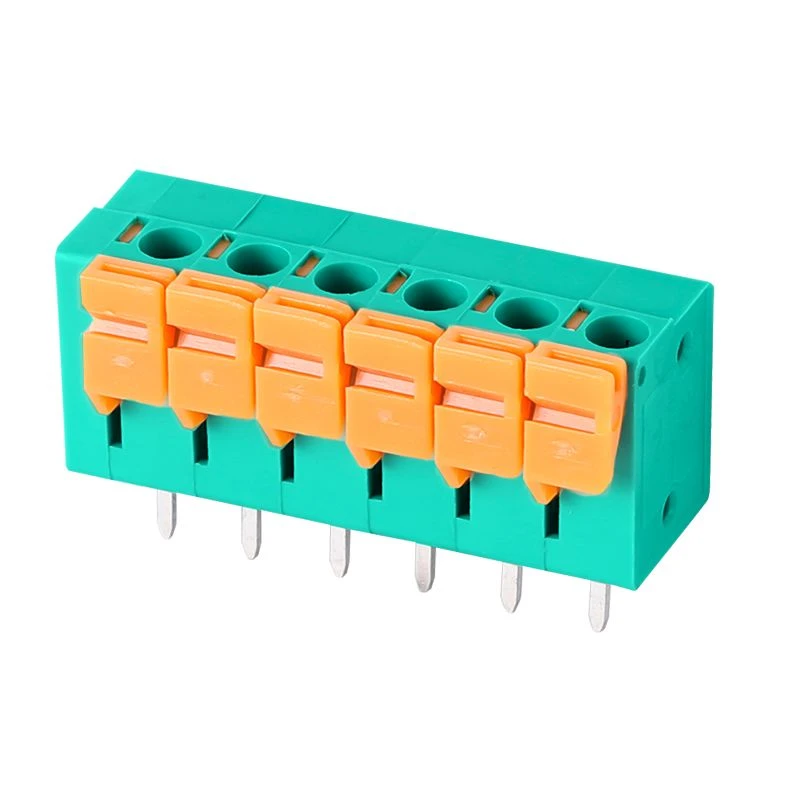

The XC142V-5.08 spring-loaded terminal block represents a new trend. Its structure allows two wires to be connected simultaneously, making operation more convenient.
XC operates a complete in-house production line covering everything from raw materials to finished products, including internal stamping, injection molding, assembly, and electroplating. This enables the company to provide customers with high quality and fast delivery in the shortest possible time.
| UL/CUL Techical Date | |||
| Use Grroup | B | C | D |
| Rated Voltage(V) | 300 | . | 300 |
| Rated Current(A) | 8 | . | 10 |
| Wire Range Solid/Stranded(AWG) |
|||
| Withstanding VOLTAGE | 1600V/Min | ||
| IEC Techical Date | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage(V) | . | 250 | |
| Rated Current(A) | . | 15 | |
| Impulse Withstand Voltagea(KV) | . | 2.5 | |
| Conductor cross section Solid/Flexible(mm³) |
. | ||
| Material | |||
| Lnsulation Material | PA66 | ||
| Lmflammability | UL94V-0 | ||
| Contactor Material | Copper alloy | ||
| Contactive Coating | Tin plated | ||
| Mechanical | |||
| Pitch (mm) | 5.08 | ||
| Poles (p) | 2-24 | ||
| Stripping Length(mm) | . | ||
| Screw/Torque(Max)(N.M) | . | ||
| Operating temperatur(℃) | -40-+105 | ||
| Pin Dimensions | 3.6 | ||
| PCB Hole Diameter(mm) | 1.4 | ||
