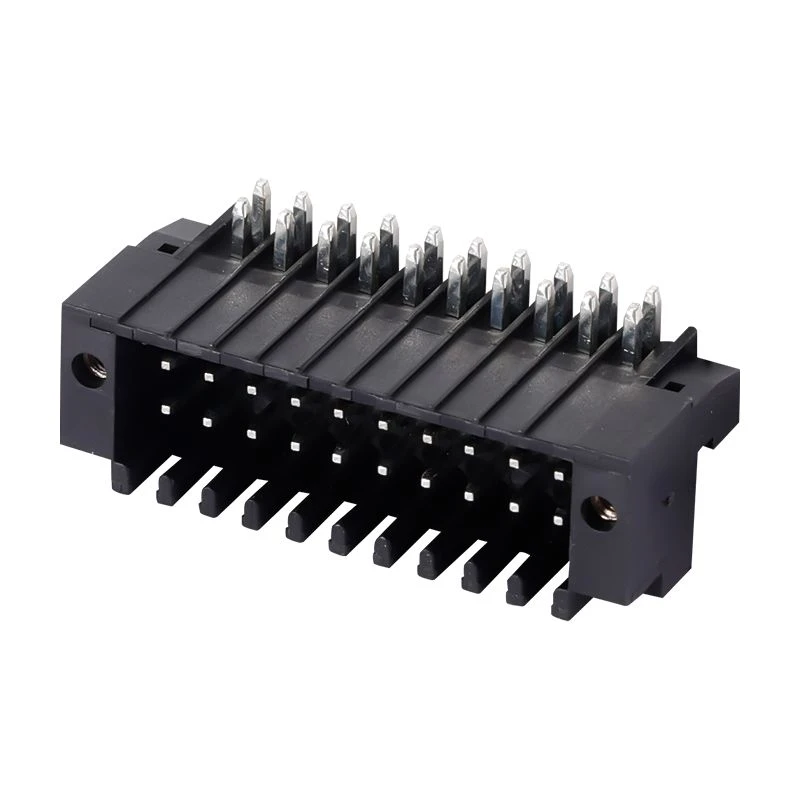

XC15EDGERM-2.54
Terminal blocks come in many standards, such as European and American standards. With increasing globalization, companies must design systems that can be sold globally.
As a result, system designers are increasingly using terminal block products manufactured in other countries. Since Europe uses nominal value measurement methods, it's common practice to use components below their nominal value in European designs. However, many American designers are unfamiliar with this concept, and a lack of understanding of the differences between standards can lead to significant difficulties in the design process.
XC has consistently kept pace with the market, striving to update its technology to adapt to the evolving market environment.
| UL/CUL Techical Date | |||
| Use Grroup | B | C | D |
| Rated Voltage(V) | 150 | . | . |
| Rated Current(A) | 5 | . | . |
| Wire Range Solid/Stranded(AWG) |
. | ||
| Withstanding VOLTAGE | 1300V/Min | ||
| IEC Techical Date | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage(V) | . | 160 | 320 |
| Rated Current(A) | . | 6 | 6 |
| Impulse Withstand Voltagea(KV) | . | 2.5 | 2.5 |
| Conductor cross section Solid/Flexible(mm³) |
. | ||
| Material | |||
| Lnsulation Material | PA66 | ||
| Lmflammability | UL94V-0 | ||
| Contactor Material | Copper alloy | ||
| Contactive Coating | Tin plated | ||
| Mechanical | |||
| Pitch (mm) | 2.54 | ||
| Poles (p) | 2*(2-24) | ||
| Stripping Length(mm) | . | ||
| Screw/Torque(Max)(N.M) | . | ||
| Operating temperatur(℃) | -40-+105 | ||
| Pin Dimensions | 3.5 | ||
| PCB Hole Diameter(mm) | 1.4 | ||
